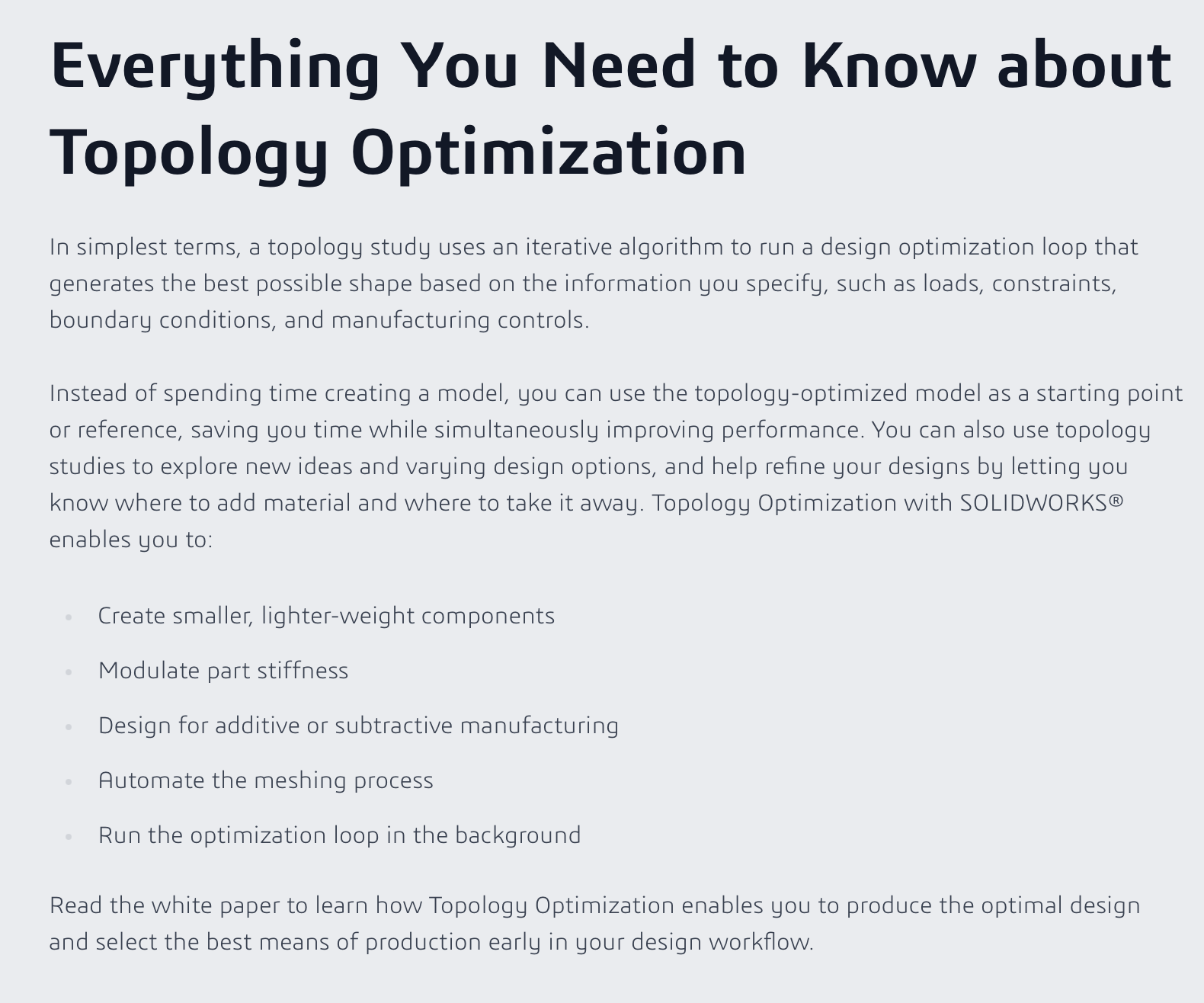

Topology optimization in SOLIDWORKS is a simulation-driven design method that removes unnecessary material from a component while maintaining structural integrity under specific loads and constraints.

Drafting

Prototyping

2022

Project brief

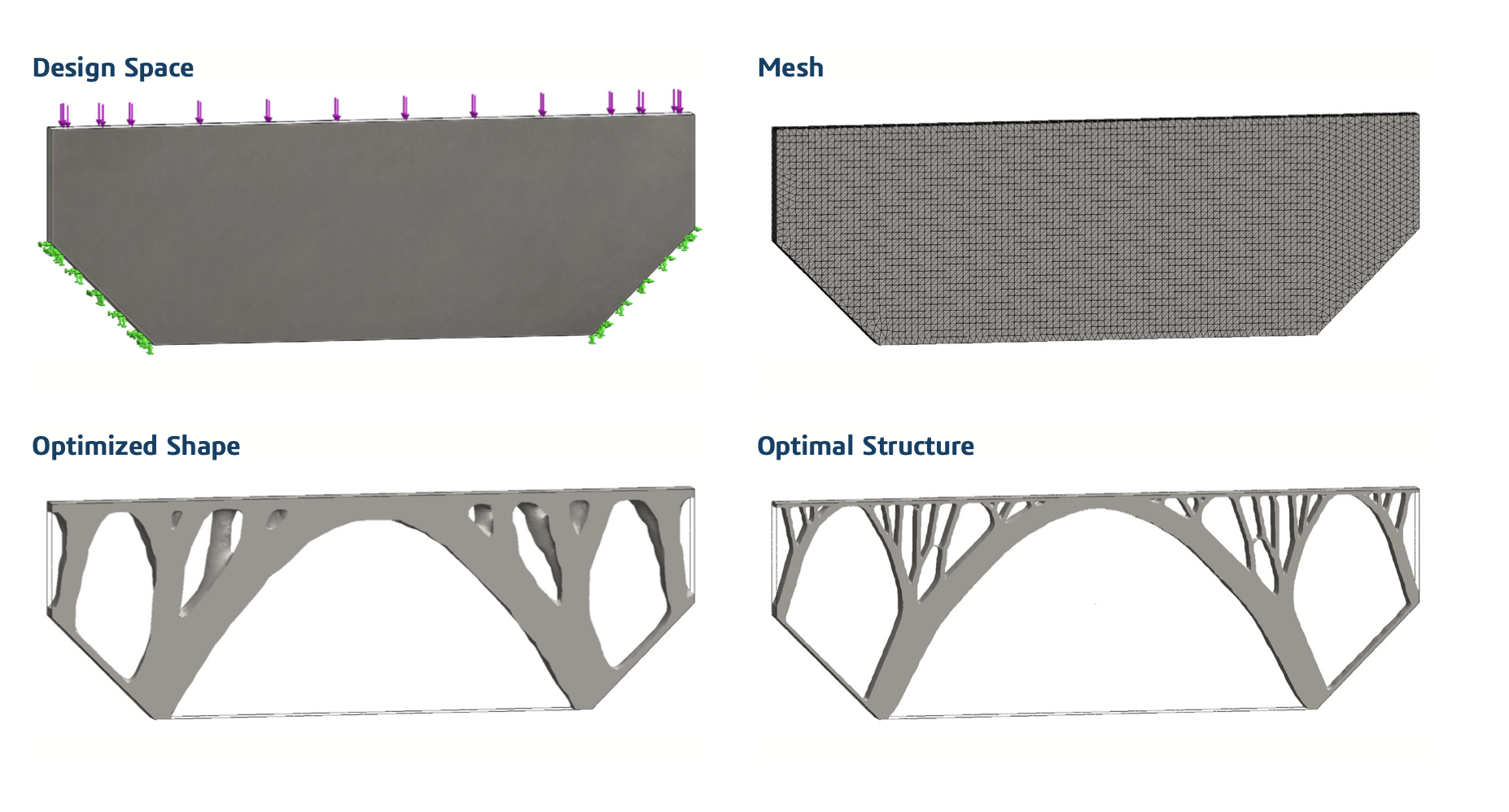

Image from SOLIDWORKS blog (Credit: “My Highlights of SOLIDWORKS Simulation 2018: the New Topology Study” by Hari Padmanbhan, Oct 20, 2017)

industry

DfAM (Design for Additive Manufacturing) strategies

RESULTS

Why It’s Accurate and Reliable

• Uses Finite Element Analysis (FEA) as core solver engine • Applies real material models (e.g., 6061-T6 Aluminum, Stainless Steel) • Supports nonlinear geometry response and displacement constraints • Preserves manufacturing intent with symmetry and thickness constraints • Produces results compatible with 3D printing and CNC machining

How It Works

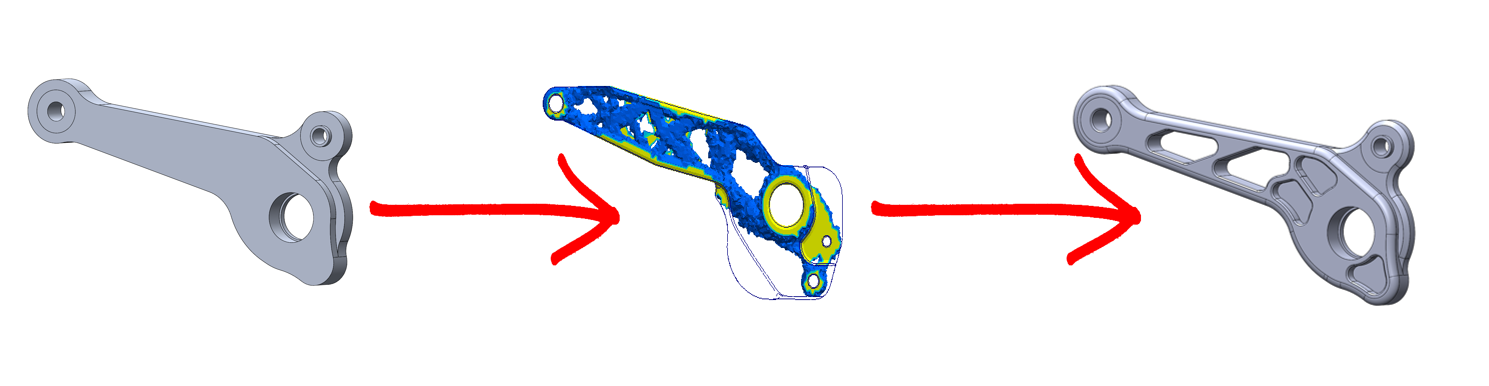

1. Initial Design (CAD model), 2. Set up a Topology Study, 3. Run Simulation, 4. Interpreted Output

Real World Industry Applications

Aerospace,Automotive,Robotics,Consumer Goods,Medical Devices

Full paper available

contact me.

to conclude

SOLIDWORKS Topology Optimization bridges the gap between design and engineering. It empowers users to design with performance in mind from the very beginning, significantly reducing prototyping time and material waste. As additive manufacturing becomes more accessible, tools like this will become increasingly vital in shaping the future of high-performance product design.
